SPECIFICATIONS

9 Maintenane functions: SAS/BMS/ETS/DPF/TPMS/Oil/Injector Coding/Throttle Adaptation

Brand Name: TOPDON

Certification: RoHS,CE,CCC

Communication Interface: OBD-II

Display: LCD 5 Inch 1280 x 720 dpi

Display Resolution: 1280*720

Display Size: Others

Electronic: Yes

External Testing Certification: ce

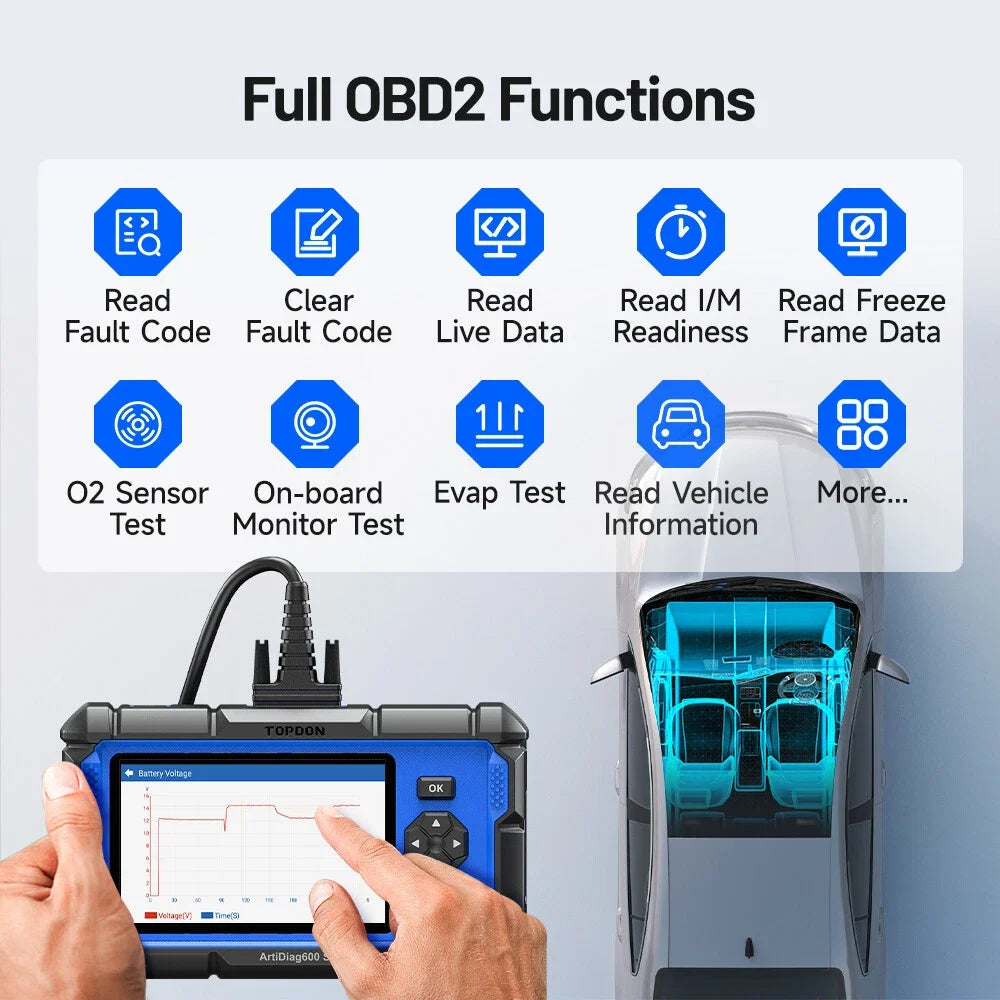

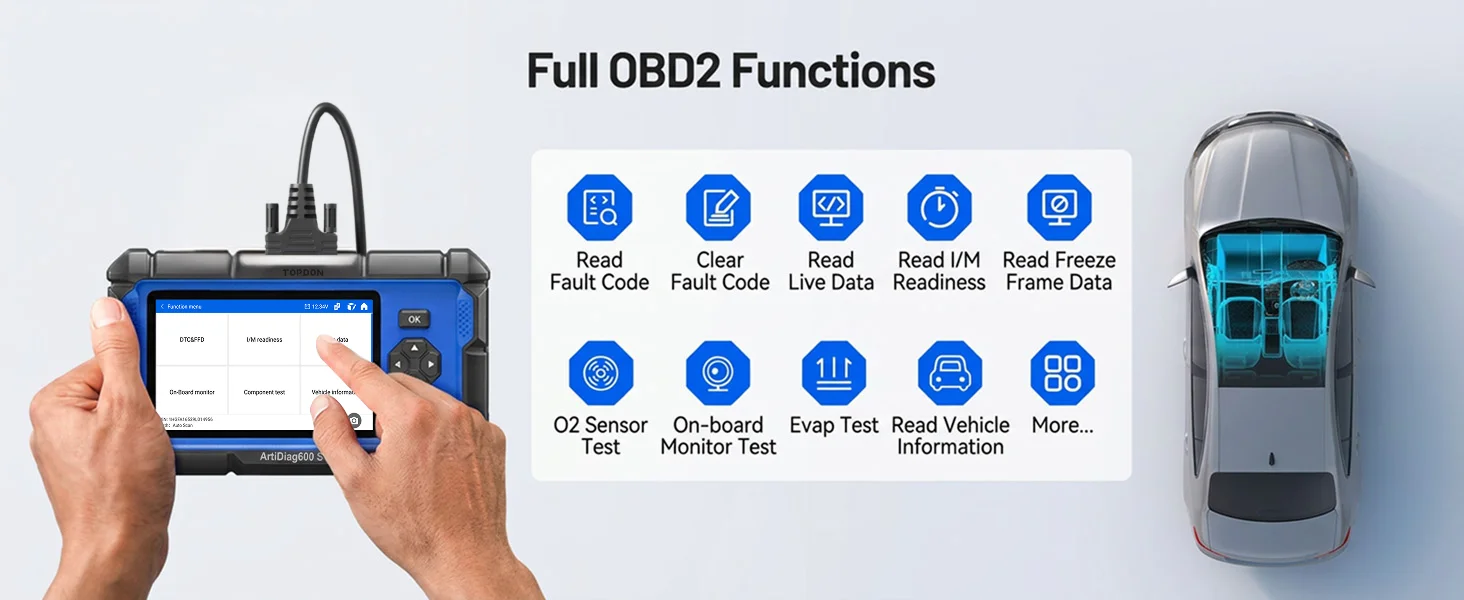

Function 1: Full OBD 2 function

Hardware Version: Newest OBD2 Scanner

High-concerned chemical: none

Input Voltage Range: 9-18 V

Is Batteries Included: Yes

Item Length: 29

Item Type: Multimeters & Analyzers

Item Weight: 1.85

Item Width: 22

Language: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Simplified/Traditional Chinese, Korean, Polish, Turkish

Material: Professional Diagnostic Tool

Model Name: Artidiag600S

Operating system: Android 11.0

Origin: Mainland China

Software Update: Yes

Software Version: Lifetime free update

Special Features: Bluetooth,Wifi

Use: Not Telecommunication

Wireless Support: Bluetooth

Description

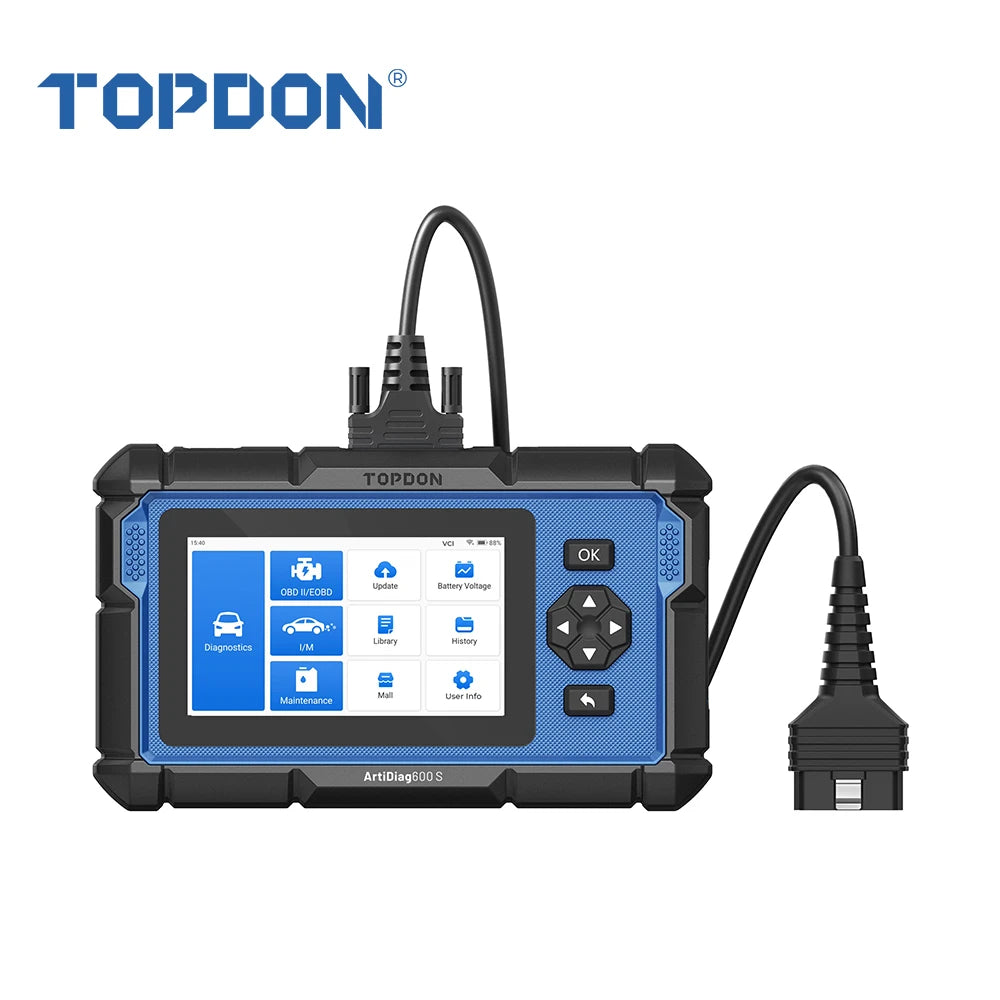

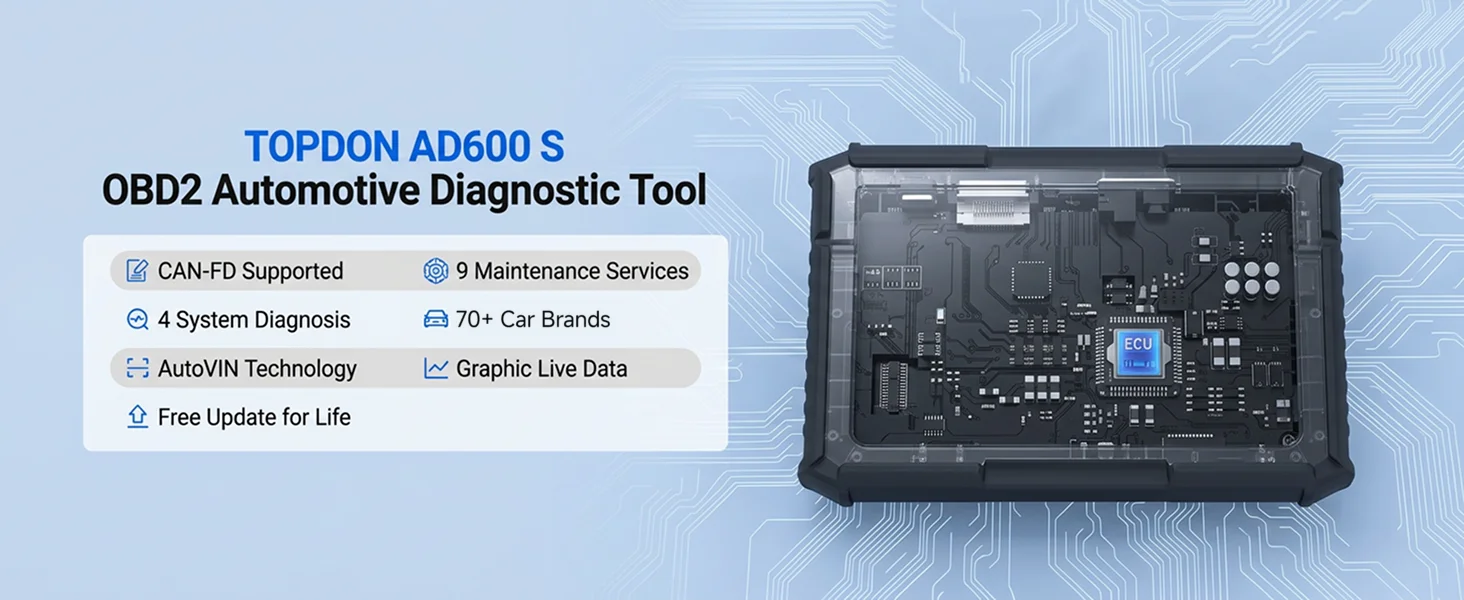

The ArtiDiag600S is a compact diagnostic scanner that now supports the CAN-FD protocol, offering extensive compatibility across more than 80 automotive brands worldwide. Designed to provide a detailed analysis of four major vehicle systems—Engine, Transmission, Airbag, and ABS—this scanner enables fast and efficient repairs. It features nine essential maintenance functions, including Oil, Brake, SAS, BMS, DPF, ETS, and TPMS resets, along with ABS bleeding and injector coding. User-friendly and versatile, it’s an invaluable tool for streamlining troubleshooting and supporting effective, everyday vehicle maintenance.



Features

💡Wide Brand Coverage

Most OBD2 scanners work with vehicles manufactured after 2001, but TOPDON ArtiDiag600S compatible with OBDII-equipped vehicles built after 1996, and it works on more than 90 Vehicle Brands.

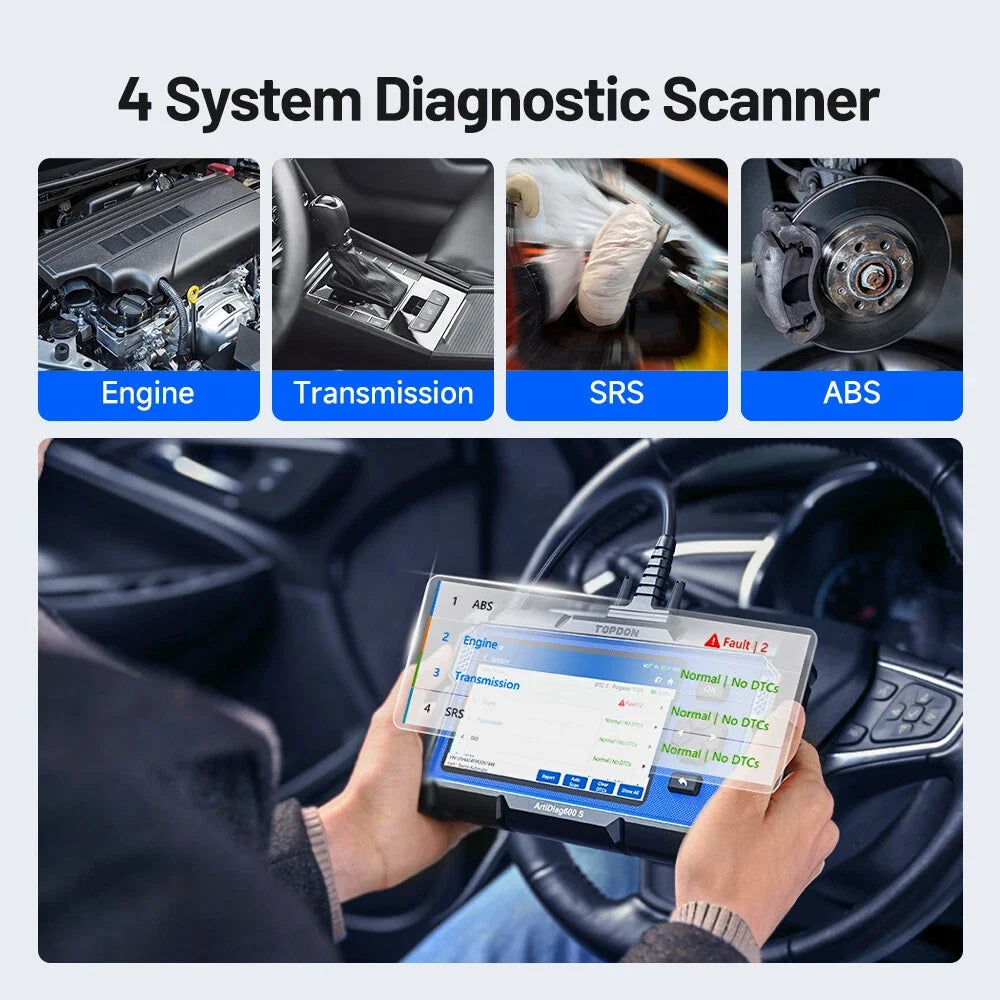

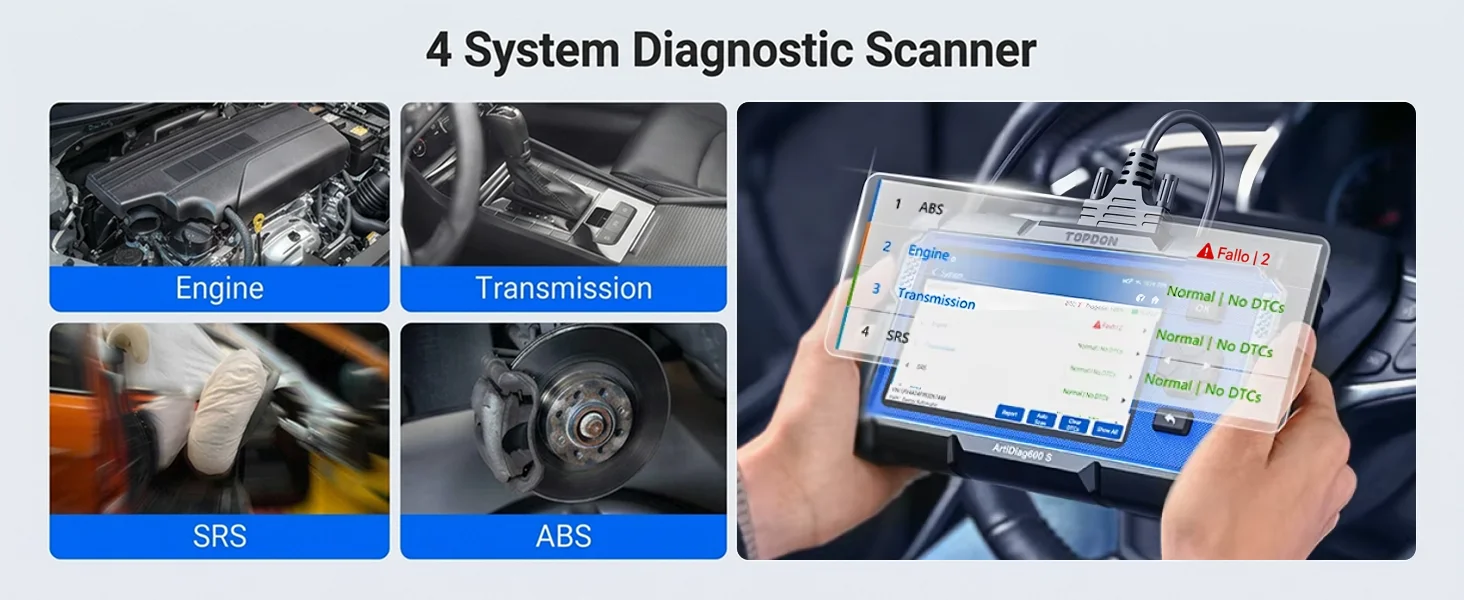

💡4 Systems Diagnostic Tool

1.For Engine

The car scanner can read & erase DTCs, turn off the check engine light and view live data, this engine code reader allow you to immediately pull the error log from the engine system. Quickly determines the cause of common faults of Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc., to avoid engine breakdowns, or even require a brand-new one.

2.For Antilock Braking System (ABS)

This AD600S scan tool is also designed to work with the anti-lock brake system (ABS) in the same way as basic code readers communicate with the engine. It will pull the diagnostic trouble code of causing the ABS lights to come on. Some of the common problems include blown sensor fuses, low brake fluids, and faulty sensors. Once the problem has been fixed then you can use this ABS diagnostic tool to reset the ABS lights.



3.For Airbag System (SRS)

To prevent serious harm or death in case of an accident, this SRS diagnostic scanner makes the car work in a safe and proper way by reading and clearing any fault code that exists in SRS (Airbag) system, and then turning off the airbag’s warning light.

4.For Transmission

The ignorance of a gearbox problem will lead you to a tremendous maintenance cost. To keep the transmission system output closely linked to the load and speed, this scan tool views live data, reads and clears codes in transmission systems, and turns off the warning light.

Note: The function list is dependent on your car’s make, model and year. Reach us for details.

💡9 Hot Rest And Relearn Maintenance Services

1.Injector Coding

Write the new injector code into the car system for correct cylinder injection quantity.

2.Oil Reset

You can use this OBD2 scanner to reset the oil maintenance minder system: reset the oil service light and program oil life change intervals. It can also turn off oil change lights. This function is especially handy for mechanics having to reset a multitude of oil lights every day.

3.BMS Reset

Your car system still holds the old battery parameters and treats the new battery like an old one? Use this service to evaluate the battery charge state, and register the new battery replacement.

4.ABS Bleeding

This car scanner can check the operating conditions of Anti-lock Braking System (ABS). It helps remove the trapped air, improves the performance of the brake system, and ensures your car remains safe to drive.

5.DPF Regeneration

This diagnostic tool can manage DPF regeneration to clear the blockage through continuous burning of the particulates captured in the filter. With AD600S, you can get rid of stored soot and even find faults in the DPF system with no hassle.

6.Brake Reset

Cars and trucks with electronic parking brakes can be a pain to service without a scan tool allowing you to retract electric parking brake calipers. This feature allows you to reset the brake pad after the replacement.

7.TPMS Reset

When replacing TPMS sensors, it can quickly look up the tire sensor from the vehicle's ECU, reset tire pressure and turn off the tire pressure MIL.

8.Throttle Adaptation

This scan tool can make initial settings to throttle actuators so you'll have smooth driving after the throttle body has been replaced or cleaned.

9.SAS Reset

This feature helps erase the record of the old steering angle sensor and overwrite it with a new one. This is a function not frequently found on cheaper scan tools. It is important that your steering stays aligned, and vital to ensure that the driver-assistance system works properly.

Note: The function list depends on your car's make, model, and year. Contact us for details.

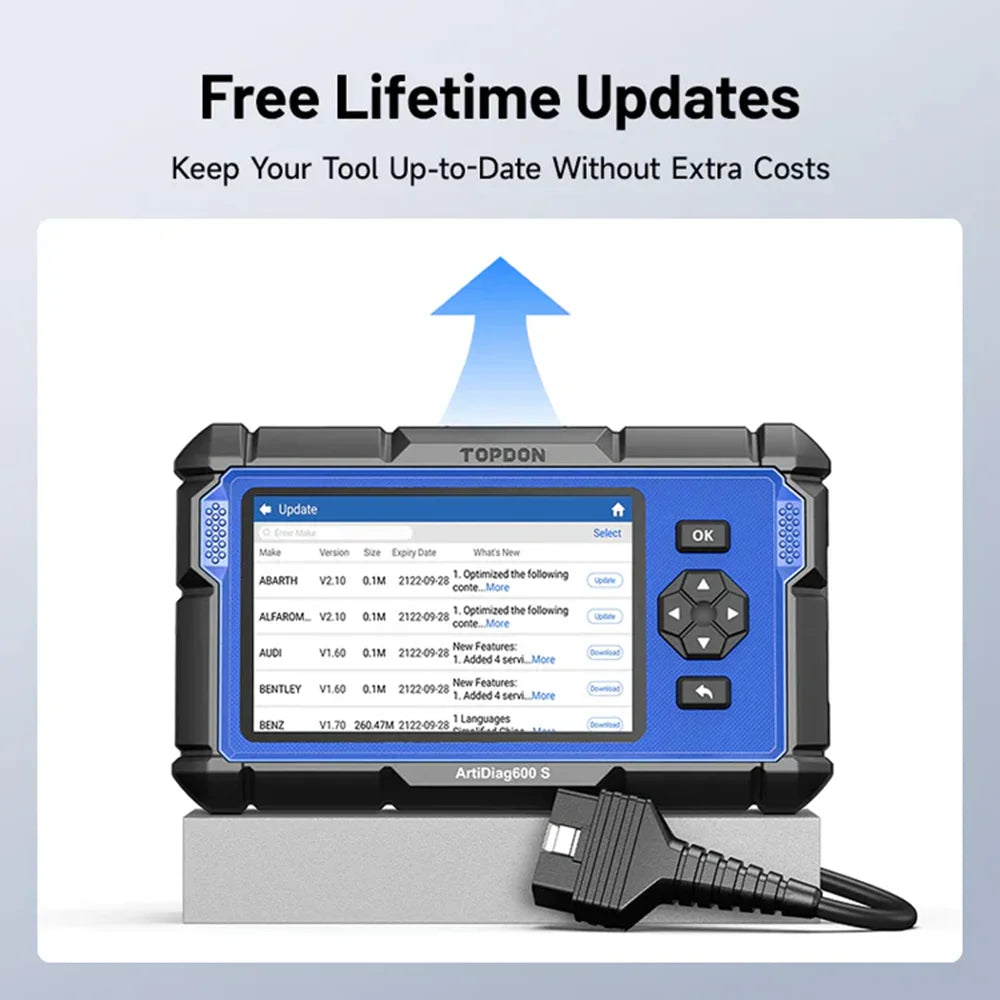

💡Lifetime Free Updates

Maximize your investment with lifetime free software updates, ensuring you always have access to the latest features and data—all at no extra charge. With just one click, you can effortlessly upgrade via Wi-Fi and stay ahead.

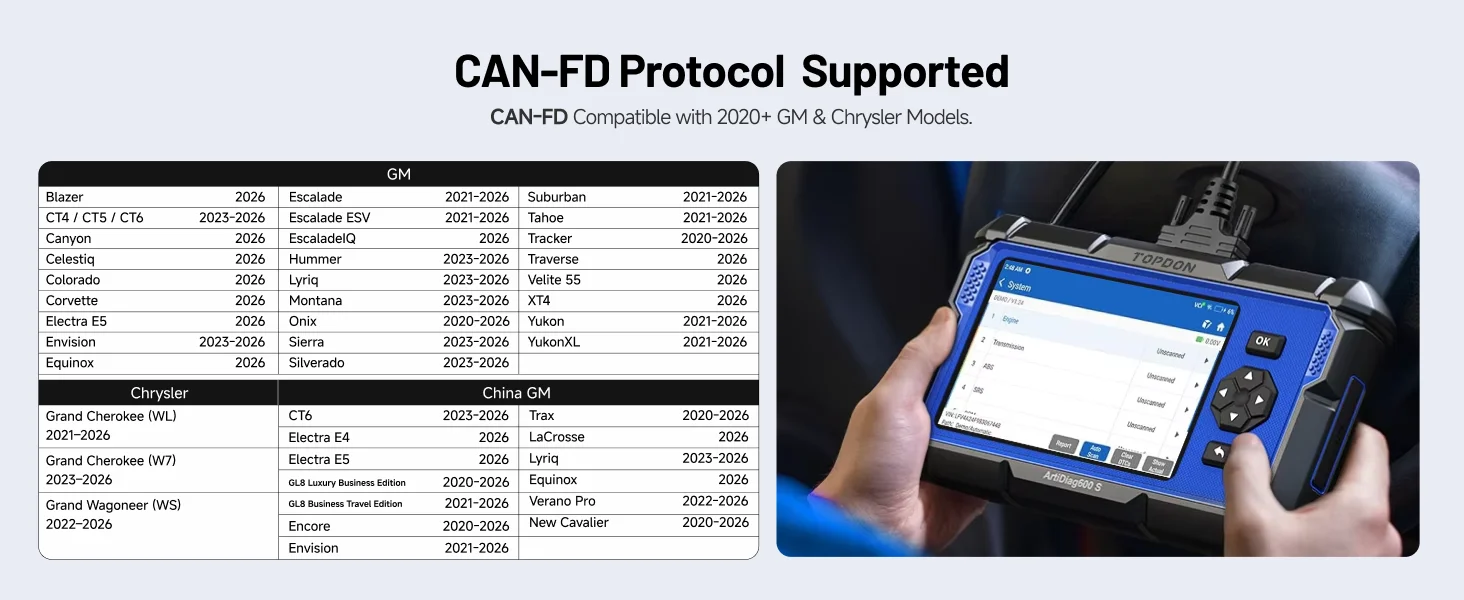

💡CAN-FD Protocol--Diagnose Faster

Upgrade your diagnostic capabilities with the latest ArtiDiag600 S, now equipped with CAN-FD protocol support for rapid data exchange between the scanner and your vehicle. This device is compatible with an expanding range of modern vehicles, including GM, Chrysler, and Fiat models from 2020 onward, enabling faster and more efficient diagnostics.It also fully supports traditional CAN protocols, making it a versatile tool for 1996 and newer vehicles.

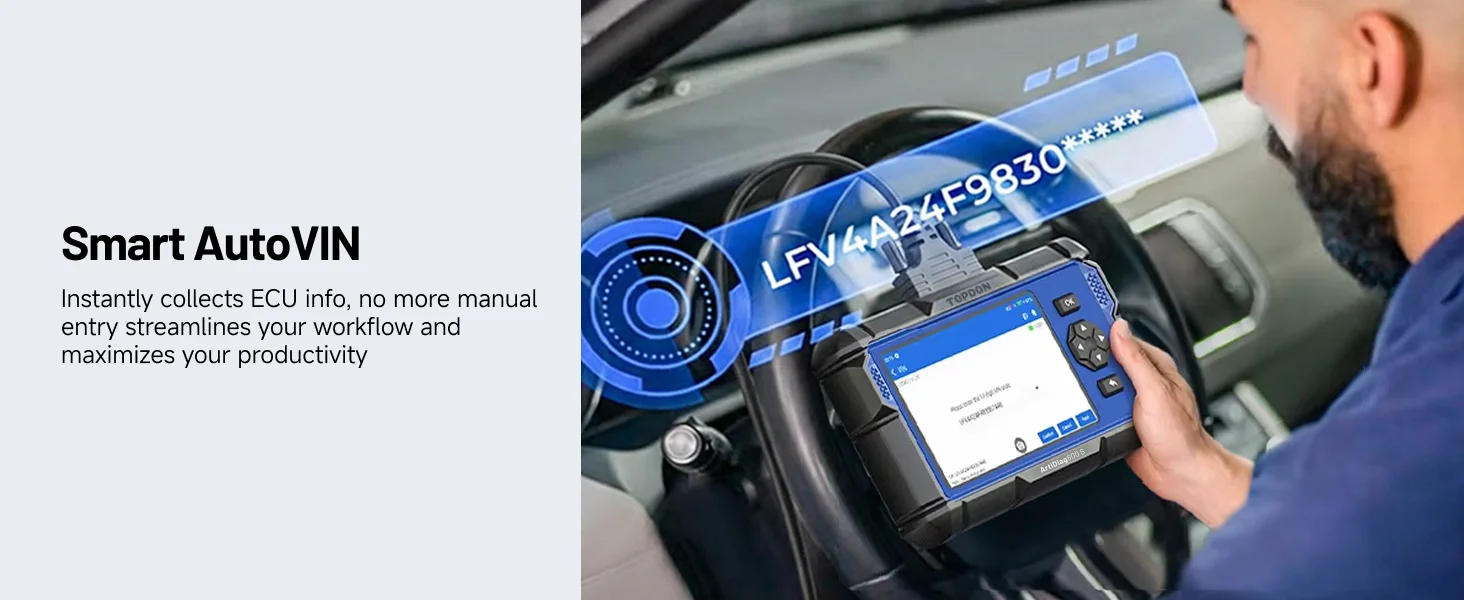

💡5-Second One-Touch AutoVIN

With AutoVIN Technology, quickly identify the vehicle and initiate repairs right away. This scanner automatically generates detailed diagnostic reports, which can easily be shared electronically, facilitating seamless communication and quicker decision-making in your workflow.

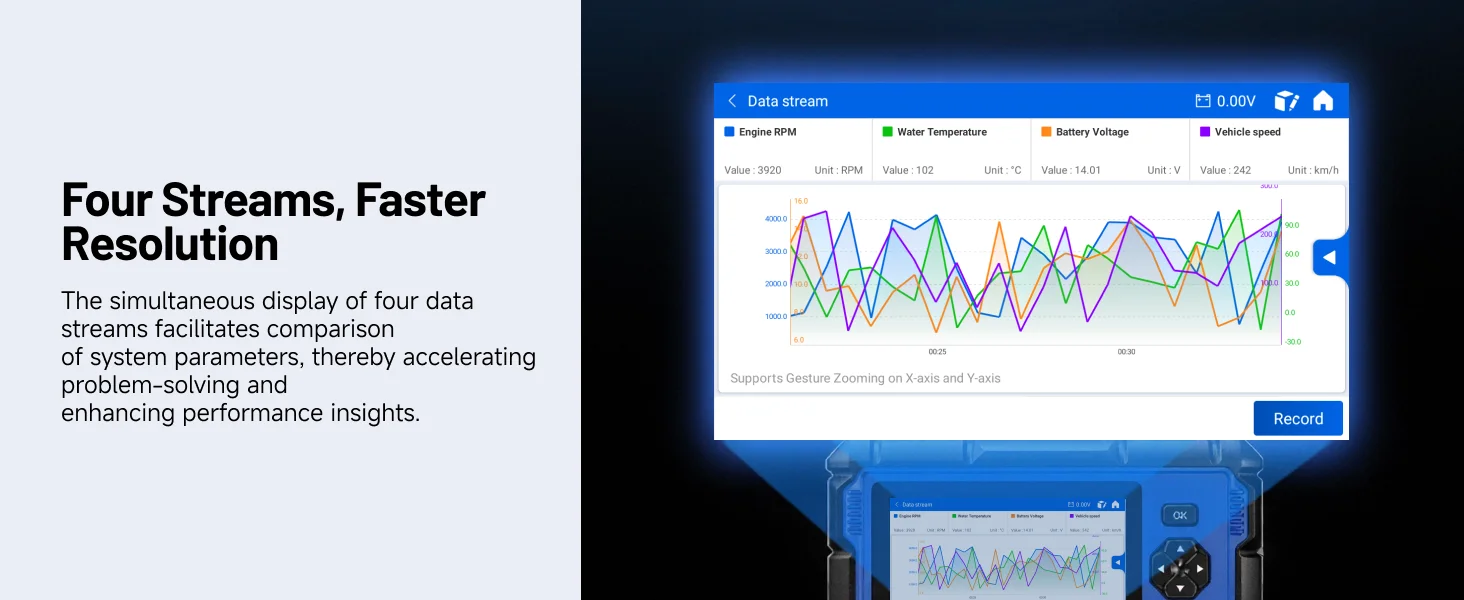

💡Four Streams, Faster Resolution

Displaying four streams simultaneously allows for easy comparison of system parameters, accelerating issue resolution and enhancing performance insights. The ArtiDiag600 S also enables data recording for playback, allowing you to monitor performance trends over time.

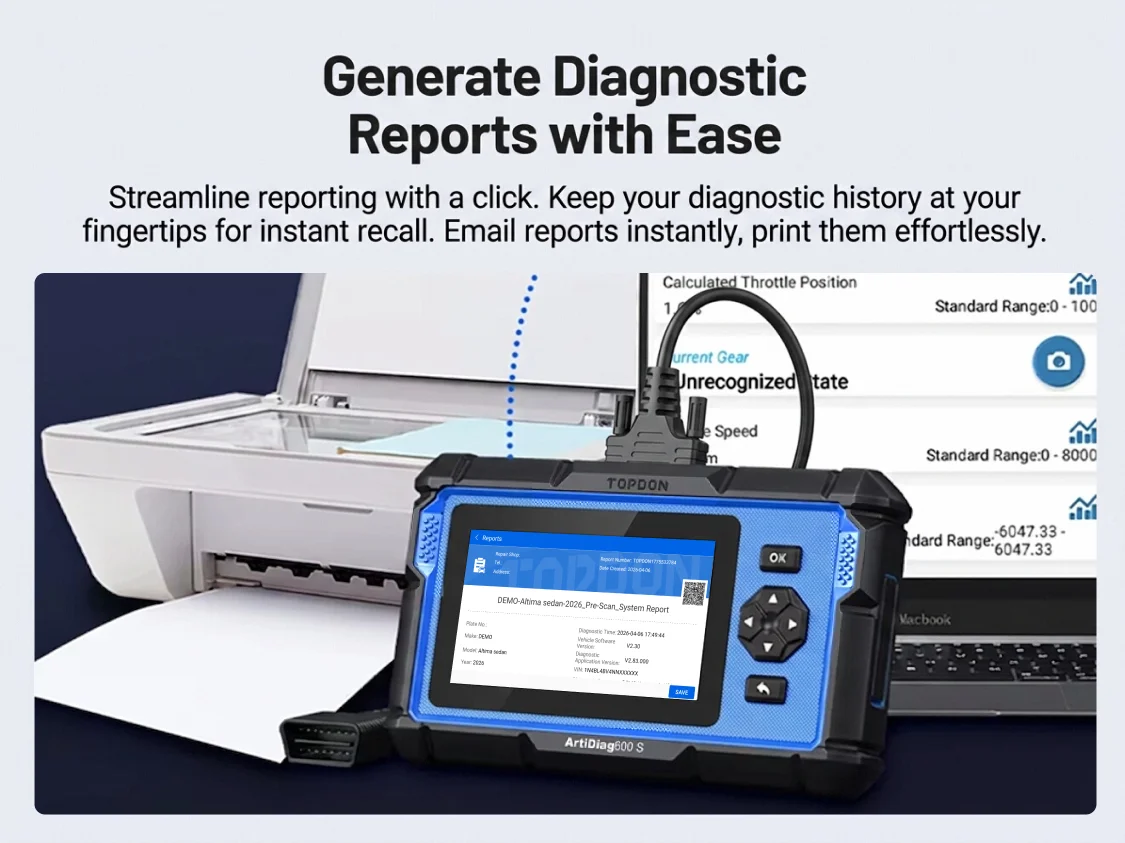

💡One-Tap Code Clear & Quick Feedback

Effortlessly perform rapid system checks and clear codes with the "Clear Code" feature on the Health Report interface, all with a single tap. Use the Quick Feedback option to report issues directly to technical support, giving you instant access to essential information and minimizing downtime.

💡Durable, Dependable, and Independent

The ArtiDiag600 S features a large, easy-to-read display for seamless data viewing and analysis. Built for durability, it is shock-resistant and waterproof, making it ideal for rugged environments. Additionally, it operates independently, allowing you to perform diagnostics and generate reports without concerns about battery life or connectivity issues.

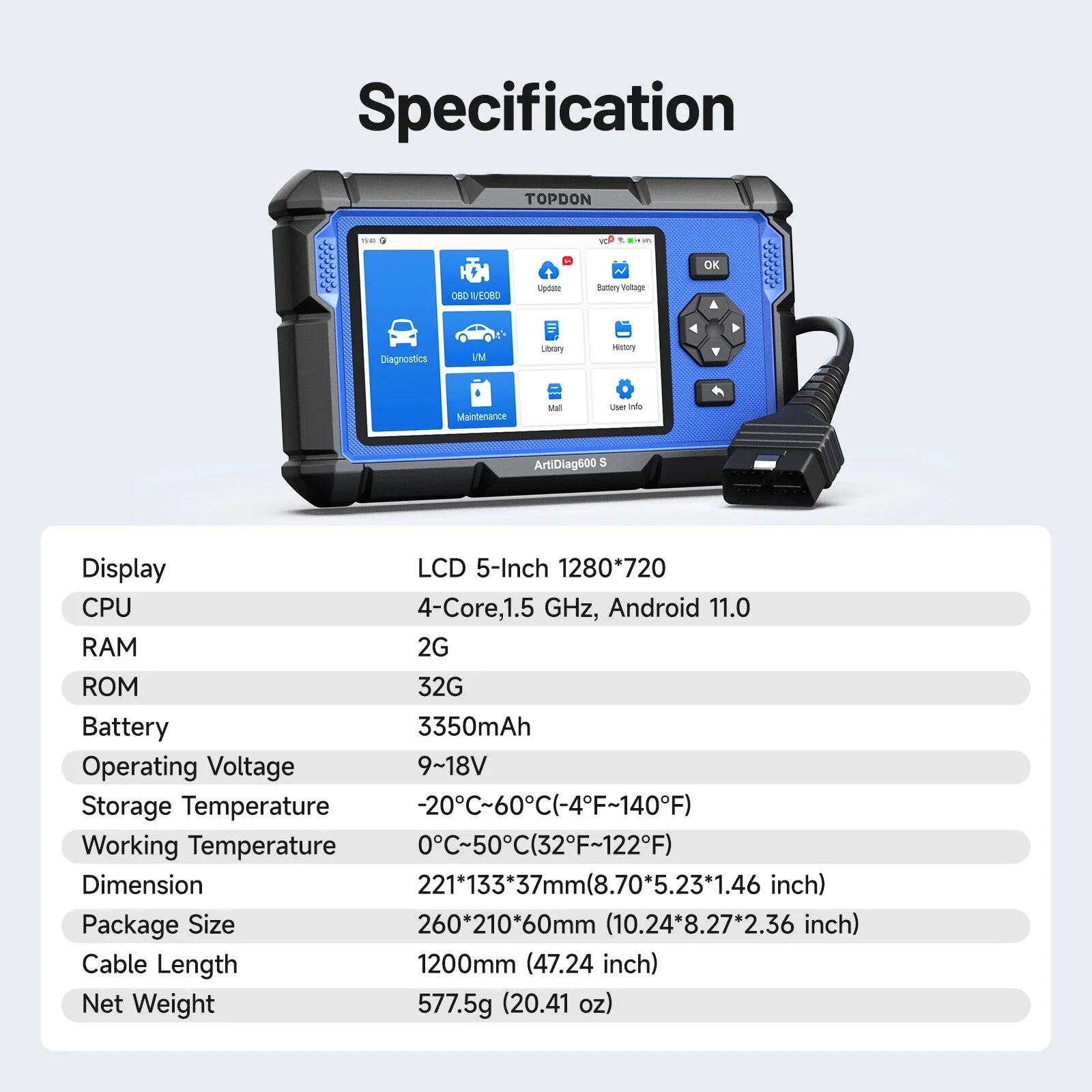

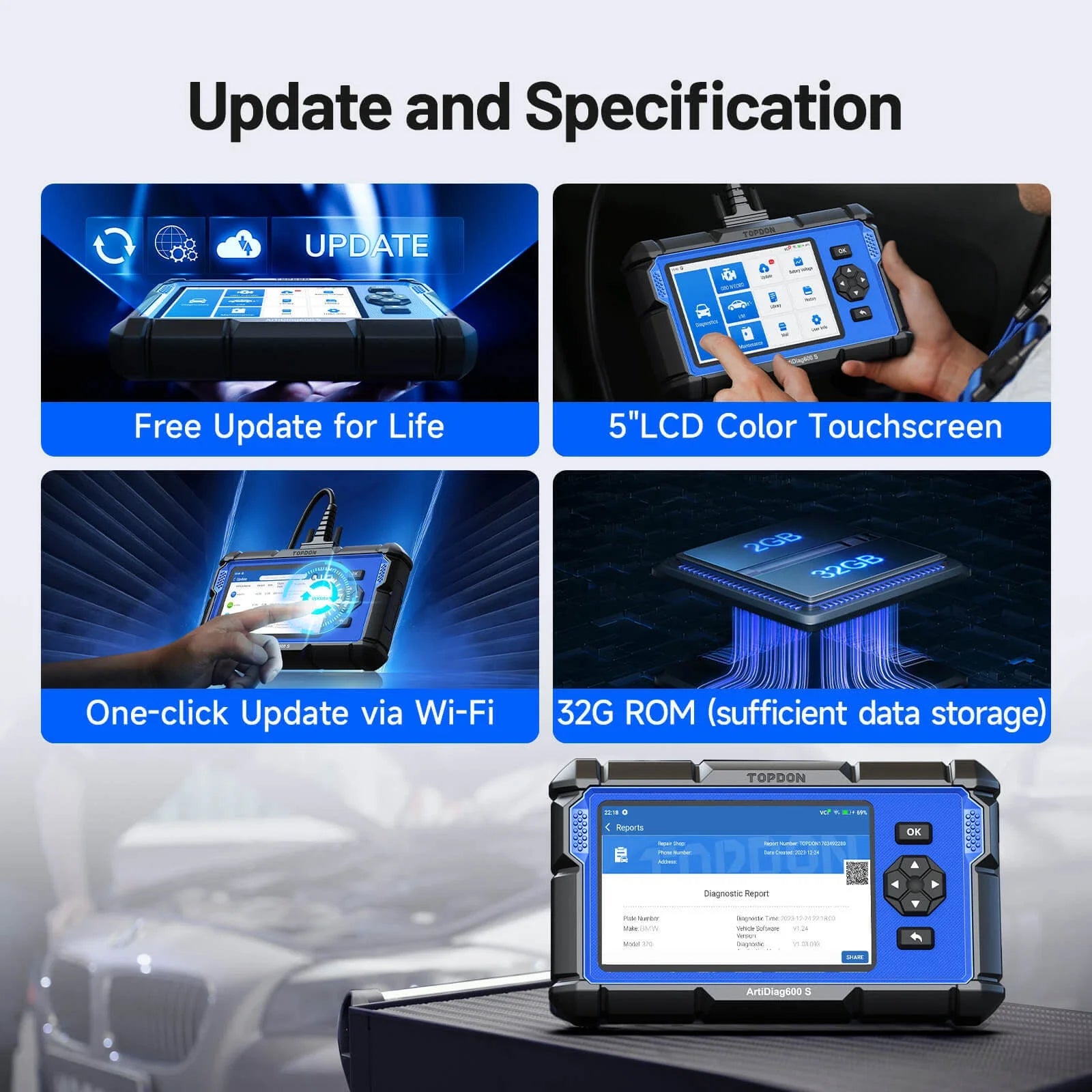

Specifications

Display Screen: 1280*720 Touchable Screen

CPU: 4-Core Processor, 1.8 GHz, Android 11.0

Memory: 2G RAM, 32G ROM

Battery: 3350 mAh/3.7 V

Input Voltage Range: 9-18 V

Working Temperature: -10℃ to 50℃ (14℉ to 122℉)

Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)

Dimension: 8.9*5.3*1.56 inch (225.15*135.15*39.7 mm)

Net Weight: 578 g (20.39 oz)

Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Simplified/Traditional Chinese, Korean, Polish, Turkish

Please note that vehicle software requires re-downloading after switching the language.

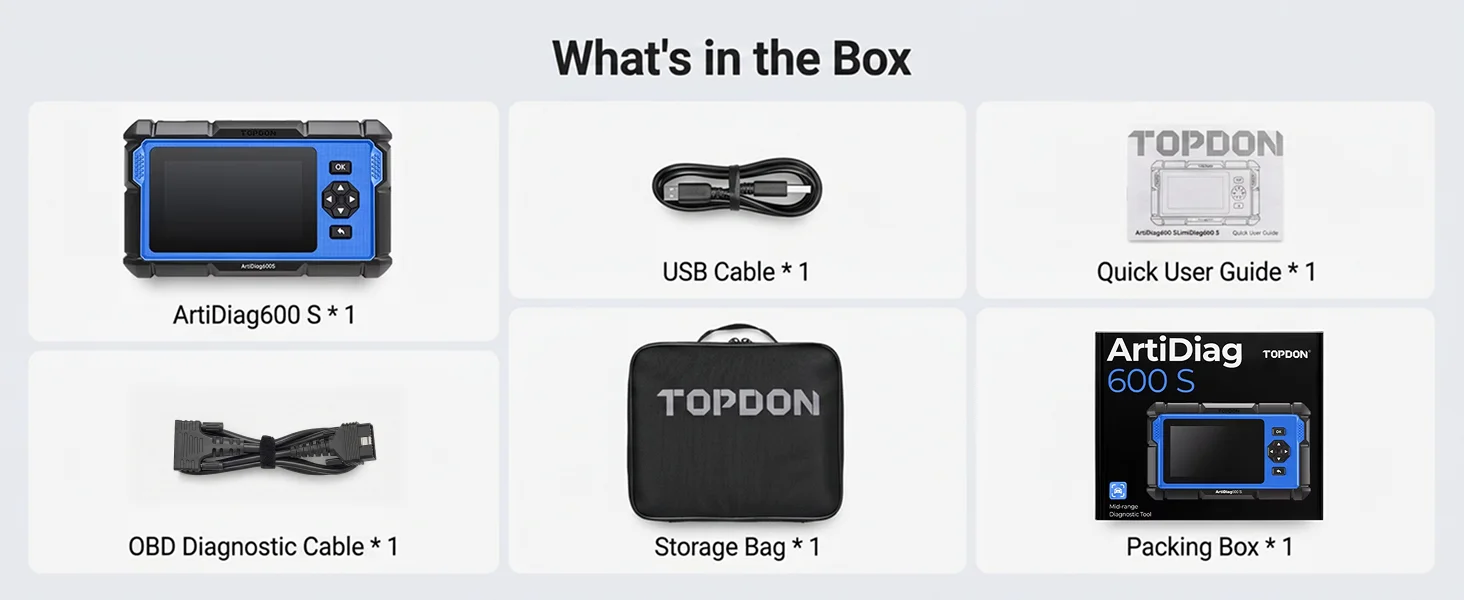

Packing List

1*ArtiDiag600 S

1*OBD-II Diagnostic Cable

1*USB Cable (Type-A to Type-C)

1*Quick User Guide

1*Carrying Case

TPMS Sensor



🏆Please check the Vehicle List below before Purchase

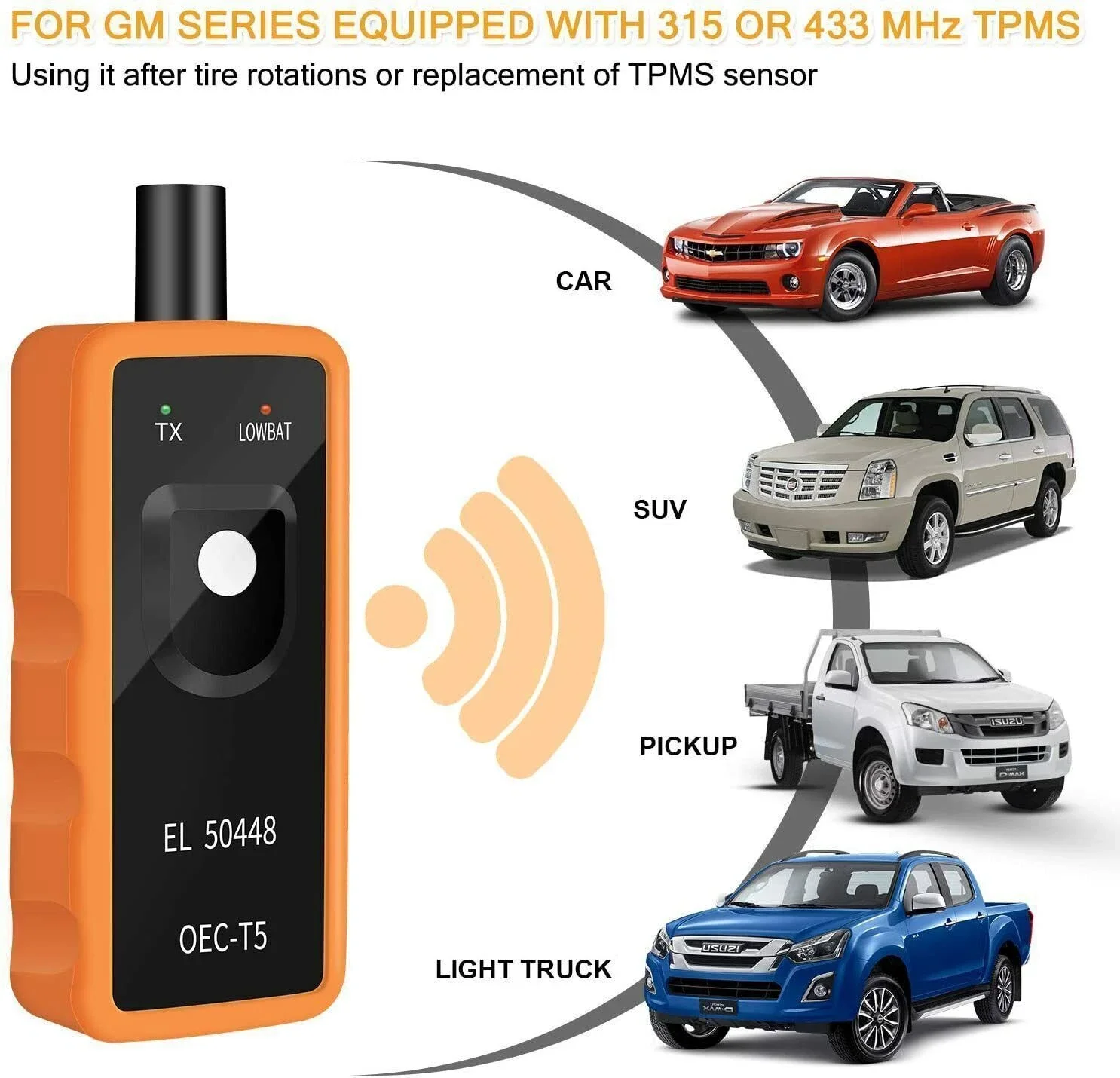

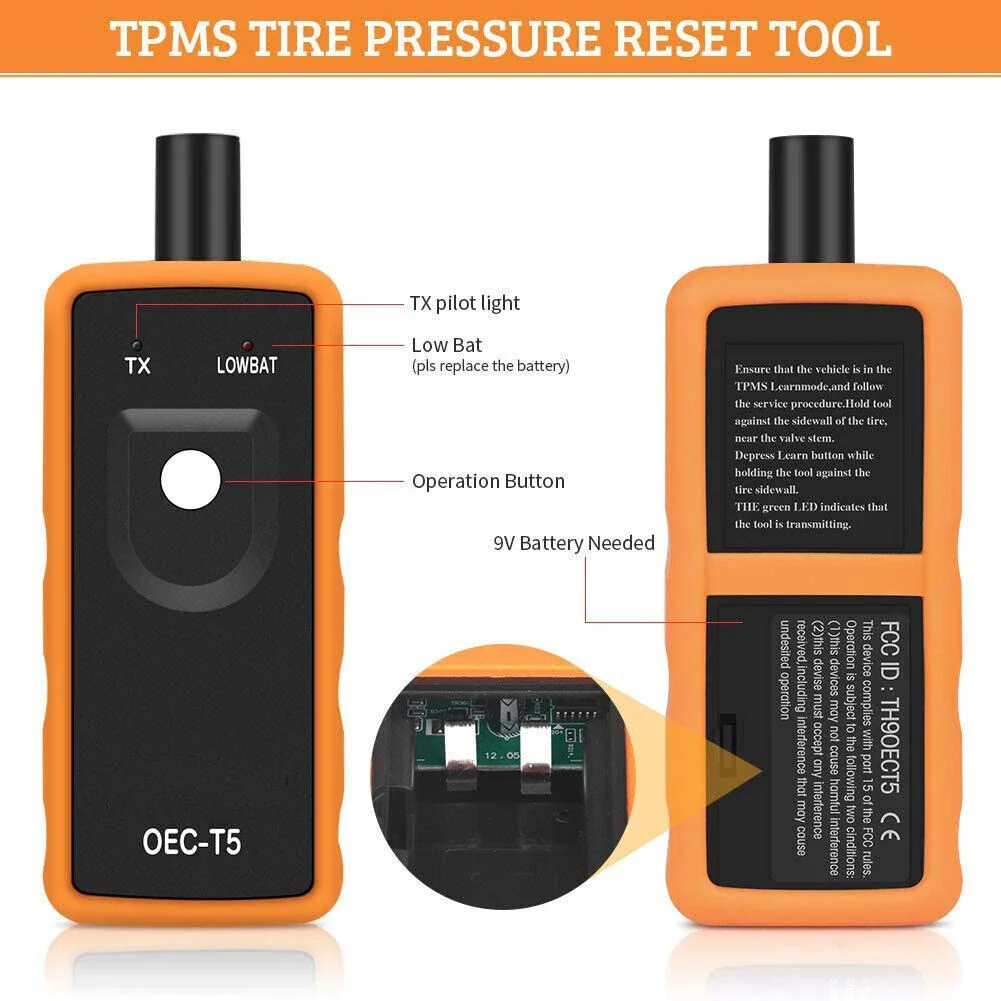

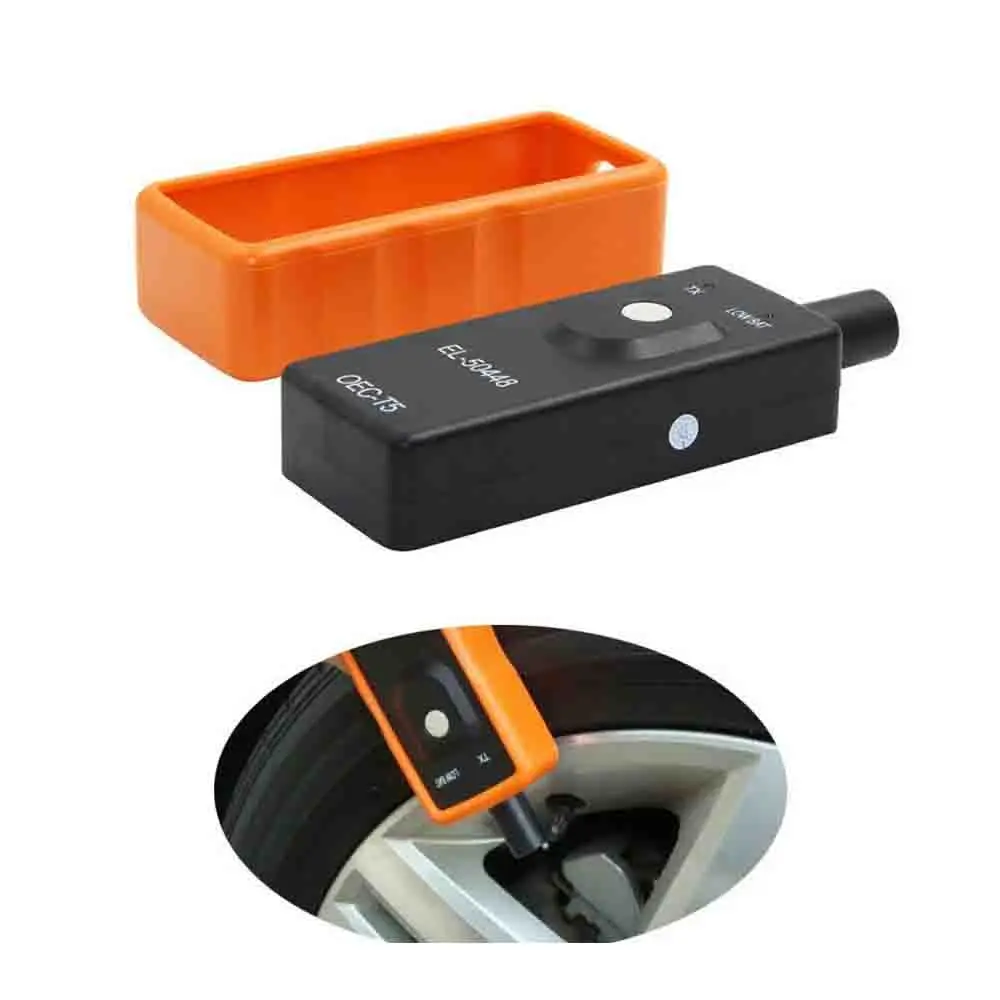

NEW Tire Pressure Monitor Sensor TPMS Activation Tool

For vehicles equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool.

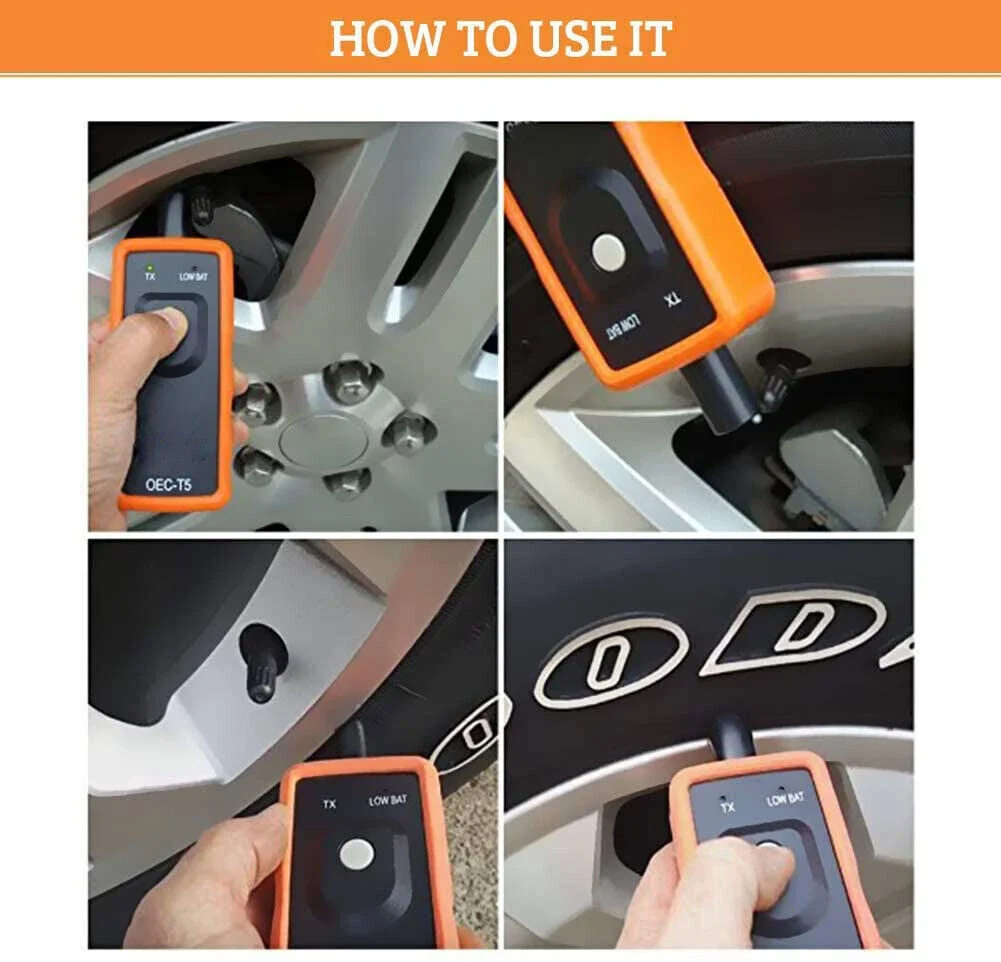

How to use:

The tire pressure sensor on models in and after 2012 can be read, only with some specified diagnostic tools. Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor. After replacing a tire or wheel speed sensor.

Please refer to the specific methods as follows:

Step 1 - Enter leaning mode

>Set the gearshift lever to "P"
>Put the ignition switch to "ON"
>Enter the interface of tire pressure display by DIC
>DIC shows "Press Set / Ctrl to re-learn"
>Press "Set / Ctrl"
>The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode

Step 2 - Read tire pressure sensor information

>Start from the front-left wheel
>Make the Diagnostic Tool antenna up against the valve core position & close to the rim of the tire sidewall
>This tire pressure tool starts by the start switch
>Successful to read the tire pressure sensor information when the horn bleeps once

Step 3 - Same method to read other tire pressure information

>Follow the instruction above to read tire pussure of the front-right, rear-right, rear-left wheels
>Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete

Packing List:

1*TPMS Reset Tool

NOTE: The package does not include the charger and battery, please buy them by yourself

Vehicle List:

2010 9-5
2010 Acadia, Enclave, OUTLOOK, Traverse (VIN R/V)
2010 Allure, LaCrosse (VIN G)
2010 Antara, Captiva, Terrain, Winstorm
2010 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
2010 Aveo, G3, Barina (VIN S/T)
2010 Buick Excelle
2010 Buick Regal (China)
2010 Camaro (VIN F)
2010 Canyon, Colorado (VIN S/T)
2010 Cobalt, G5 (VIN A)
2010 Corvette (VIN Y)
2010 Cruze (China)
2010 Cruze
2010 CTS (VIN D)
2010 Daewoo Lacetti
2010 DTS (VIN K)
2010 Equinox, Terrain (VIN L)
2010 Express, Savana (VIN G/H)
2010 G6 (VIN Z)
2010 H3/H3T (VIN N)
2010 HHR (VIN A)
2010 Impala (VIN W)
2010 Insignia
2010 LaCrosse (China)
2010 Lucerne (VIN H)
2010 Malibu (VIN Z)
2010 Opel/Vauxhall Astra
2010 Sierra, Silverado (VIN C/K)
2010 SKY, Solstice (VIN M)
2010 SRX (VIN N)
2010 STS (VIN D)
2010 VE/WM - Sedan, Sportwagon, Ute, Lumina, Caprice, HSV
2010 VUE (VIN Z), Captiva Sport
2011 Acadia, Enclave, Traverse (VIN R/V)
2011 Alpheon
2011 Antara, Captiva
2011 Astra
2011 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
2011 Aveo, Barina (VIN S/T)
2011 Buick Excelle
2011 Buick Regal (China)
2011 Camaro (VIN F)
2011 Canyon, Colorado (VIN S/T)
2011 Caprice PPV
2011 Captiva Sport
2011 Corvette (VIN Y)
2011 Cruze
2011 CTS (VIN D)
2011 DTS (VIN K)
2011 Equinox, Terrain (VIN L)
2011 Express, Savana (VIN G/H)
2011 HHR (VIN A)
2011 Impala (VIN W)
2011 Insignia
2011 LaCrosse (China)
2011 Lucerne (VIN H)
2011 Malibu (VIN Z)
2011 Orlando
2011 Regal (VIN G)
2011 Sierra, Silverado (VIN C/K)
2011 SRX (VIN N)
2011 STS (VIN D)
2011 VE/WM - Sedan, Ute, Sportwagon, Caprice, Lumina, Omega, VXR8
2011 Volt
2012 Acadia, Enclave, Traverse (VIN R/V)
2012 Alpheon (2706)
2012 Ampera, Volt (VIN R) (Europe)
2012 Antara, Captiva
2012 Astra-J (2857)
2012 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
2012 Aveo Classic, Barina Classic (VIN T)
2012 Aveo, Sonic (2777)
2012 Barina (2774)
2012 Buick Excelle (2861)
2012 Camaro (VIN F)
2012 Canyon, Colorado (VIN S/T)
2012 Caprice PPV
2012 Captiva Sport
2012 Chevrolet Cobalt (2809)
2012 Colorado (Other IO), S10 (South America)
2012 Corvette (VIN Y)
2012 Cruze (2863)
2012 CTS (VIN D)
2012 Equinox, Terrain (VIN L)
2012 Express, Savana (VIN G/H)
2012 Impala (VIN W)
2012 Insignia (2707)
2012 LaCrosse (China) (2710)
2012 LaCrosse (VIN G) (2709)
2012 Malibu (VIN Z)
2012 Opel Combo-D
2012 Optra, Viva (VIN J)
2012 Orlando (2859)
2012 Regal (China) (2711)
2012 Regal (VIN G) (2708)
2012 Sierra, Silverado (VIN C/K)
2012 Sonic (US/Canada) (2775)
2012 SRX (VIN N)
2012 VE/WM - Sedan, Ute, Sportwagon, Caprice, Lumina, VXR8
2012 Verano (US/Canada) (2816)
2012 Volt (VIN R)
2012 Zafira-C (2860)
2013 Acadia, Enclave, Traverse (VIN R/V) (3206)
2013 Alpheon (3094)
2013 Ampera, Volt (VIN R) (Europe) (3211)
2013 Antara, Captiva (5376555)
2013 Astra-J Convertible/Coupe (5376567)
2013 Astra-J (5376577)
2013 ATS (VIN A) (3086)
2013 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K) (3088)
2013 Aveo, Sonic (Africa, Middle East, AP, South America, CKD, Mexico) (5376711)
2013 Aveo, Sonic (Europe) (5376704)
2013 Barina (5376837)
2013 Camaro (VIN F) (3106)
2013 Caprice PPV (3105)
2013 Captiva Sport (3101)
2013 Cobalt (3107)
2013 Colorado, Colorado 7, S10, Trailblazer (5392270)
2013 Combo-D
2013 Corvette (VIN Y) (3104)
2013 Cruze (Global) (5377099)
2013 CTS (VIN D) (3085)
2013 Encore (China) (5377162)
2013 Encore, Trax (North America) (5377181)
2013 Equinox, Terrain (VIN L) (3100)
2013 Excelle (5377155)
2013 Express, Savana (VIN G/H) (3103)
2013 Impala (VIN W) (3102)
2013 Insignia (3098)
2013 LaCrosse (China) (3095)
2013 LaCrosse (VIN G) (North America) (3090)
2013 Malibu (China) (3096)
2013 Malibu (Europe, Other IO and South America) (2713)
2013 Malibu (North America) (3093)
2013 Mokka, Trax, Tracker (Europe) (5377179)
2013 Onix (3166)
2013 Orlando (Global) (5377530)
2013 Regal (China) (3099)
2013 Regal (VIN G) (North America) (3089)
2013 Sierra, Silverado (VIN C/K) (3087)
2013 Sonic (US/Canada) (5377994)
2013 Spark (US/Canada), Barina Spark (Automatic Transmission) (5421555)
2013 Spin
2013 SRX (VIN N) (3201)
2013 Trax, Tracker (Africa, Australia, Middle East, South America) (5377156)
2013 VE/WM Ute, Caprice, Lumina
2013 Verano (US/Canada) (5377996)
2013 Volt (VIN R) (North America, Holden) (3210)
2013 XTS (China) (3092)
2013 XTS (North America) (3091)
2013 Zafira-Tourer
