Vital Tech Electronics
PowMr 60A MPPT Solar Energy Battery Charge Controller
PowMr 60A MPPT Solar Energy Battery Charge Controller
Regular price
$103.99 USD
Regular price
$0.00 USD
Sale price
$103.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
You maximize your solar yield with the PowMr 60A MPPT charge controller, boosting your capture efficiency to 99.1% and delivering up to 2800W input power on 48V systems.

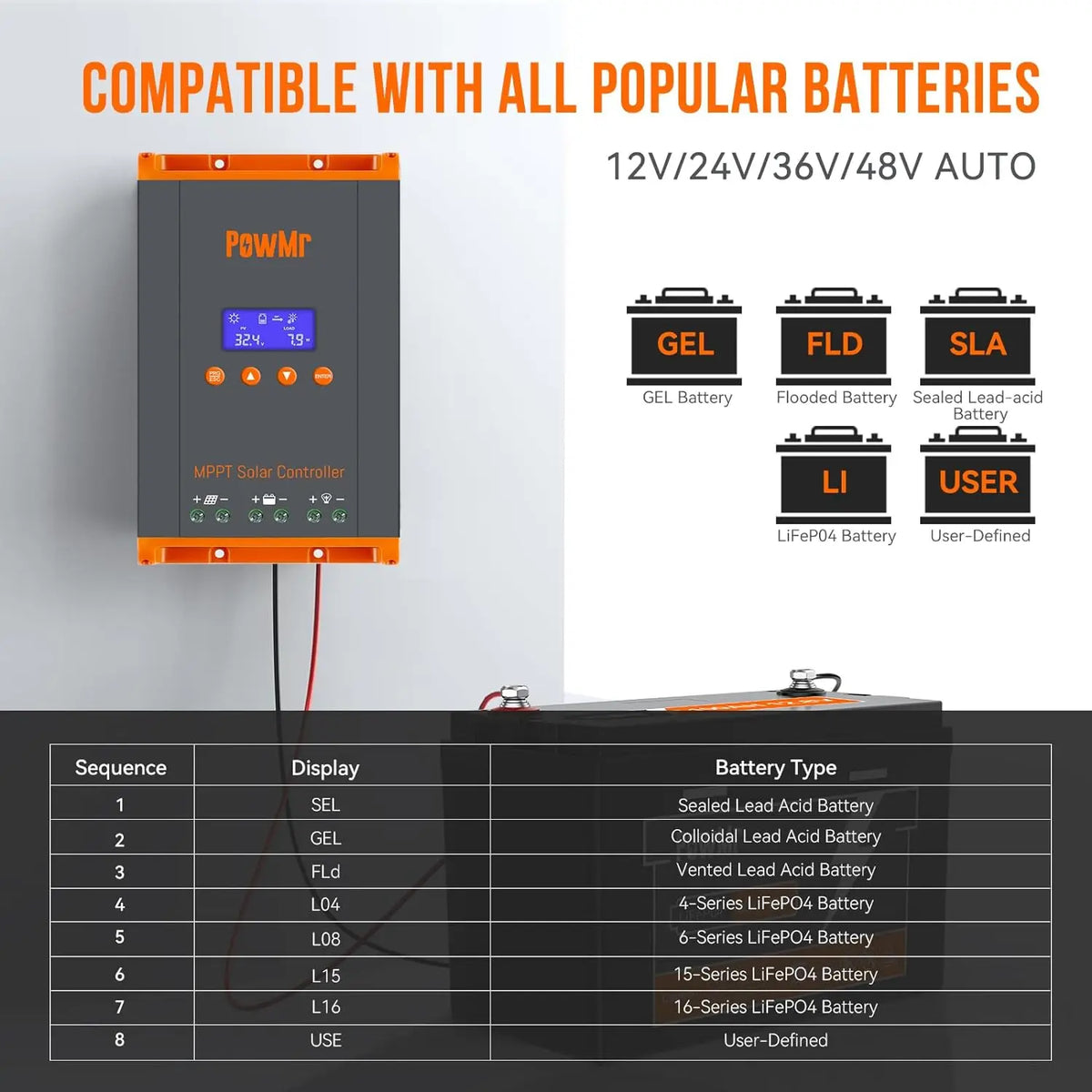

- You rely on automatic voltage detection that customizes charging curves for your lithium, LiFePO4, gel, or flooded batteries.
- You connect high-voltage arrays up to 160V to dual terminals specifically spaced for heavy-duty 9AWG copper wiring.
- You track your daily energy production and pinpoint electrical faults directly on the illuminated LCD panel.

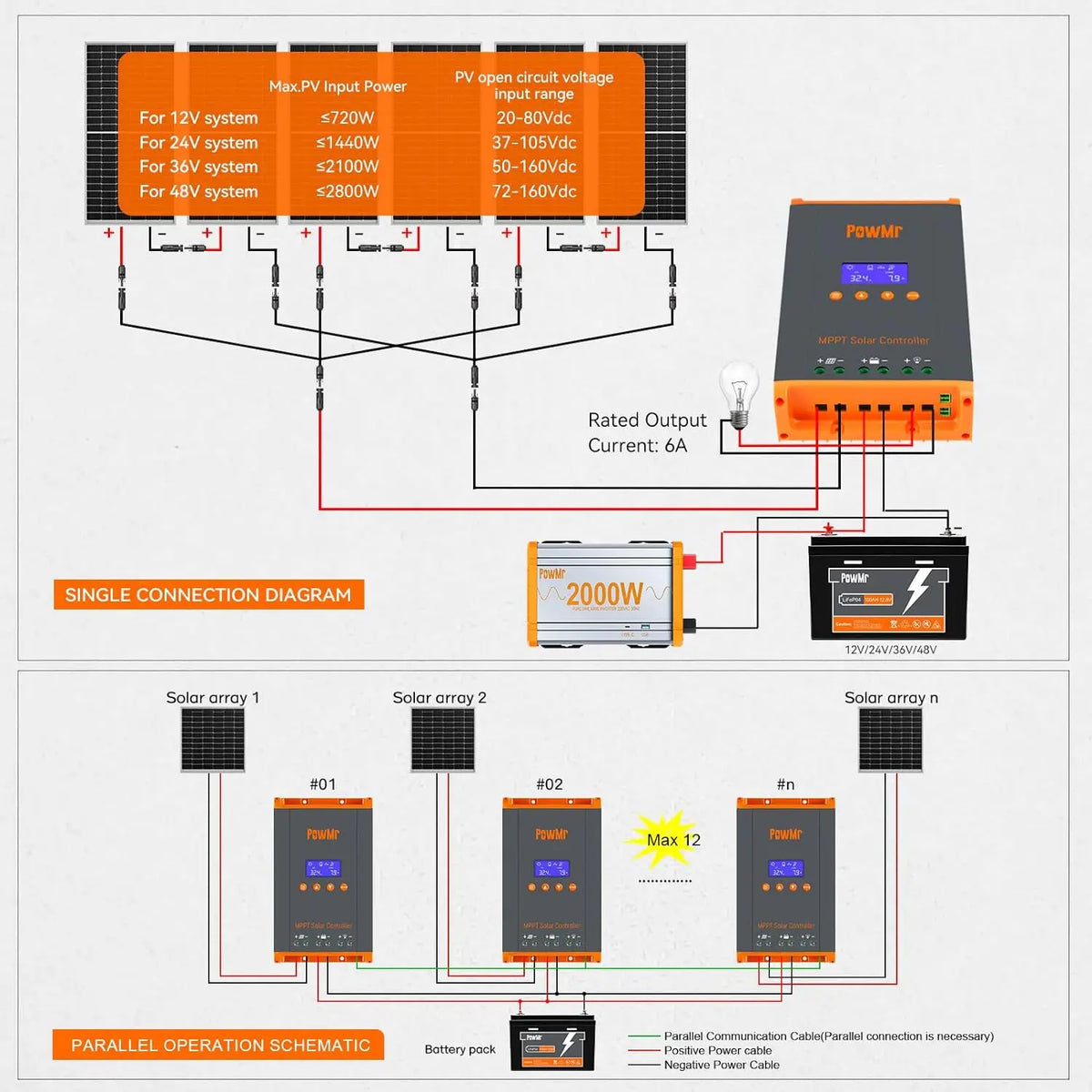

- You scale your residential power setup by paralleling up to twelve units while regulating operating temperatures between -20°C and 55°C.
Models |
HHJ60-PRO |
Solar Input Parameters | |
Max. Solar Array Open-Circuit Voltage |
160V |
|
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
|
720W
1440W
2100W
2800W
|
|
Input Voltage Range:
For 12V System
For 24V System
For 36V System
For 48V System
|
20V~80V
37V~105V
50V~160V
72V~160V
|
Battery Charging Parameters | |
Charging Technology |
MPPT |
Charging Algorithm |

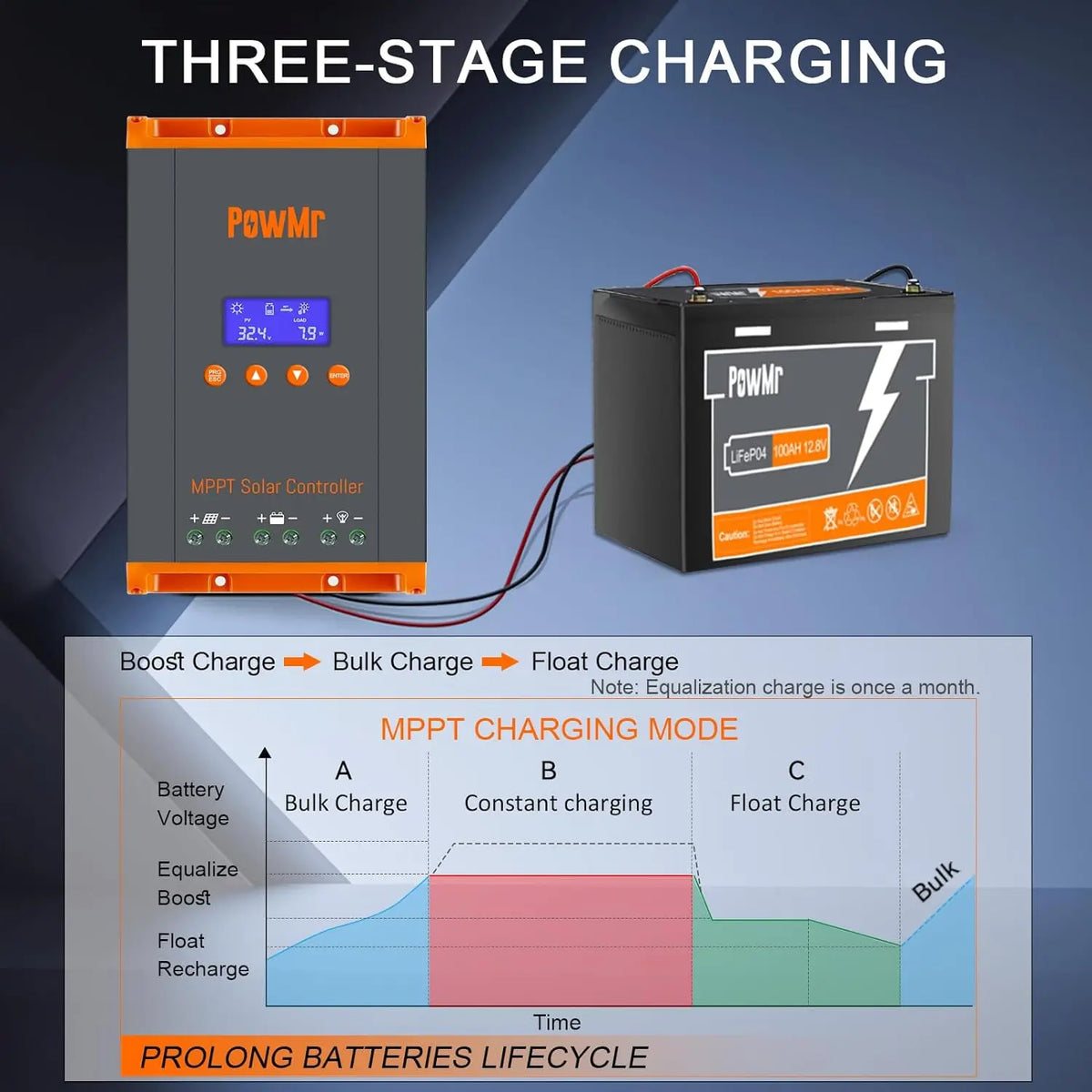

3 stages |
|
Battery Voltage Auto-Detection
12V System
24V System
36V System
48V System
|
DC9V~DC15V
DC18V~DC29V
DC30V~DC39V
DC40V~DC60V
|
Overcharge Protection Voltage |
60V |
Charging Limit Current |
61A |
Maximum Efficiency |
≥98. 1% |
Solar Utilization Rate |
≥99% |
Load Terminal Output | |
Rated Output Current |
6A |
Maximum DC Output Current |
8A |
Protection | |
Temperature Protection |
75℃ / 167 ℉ |

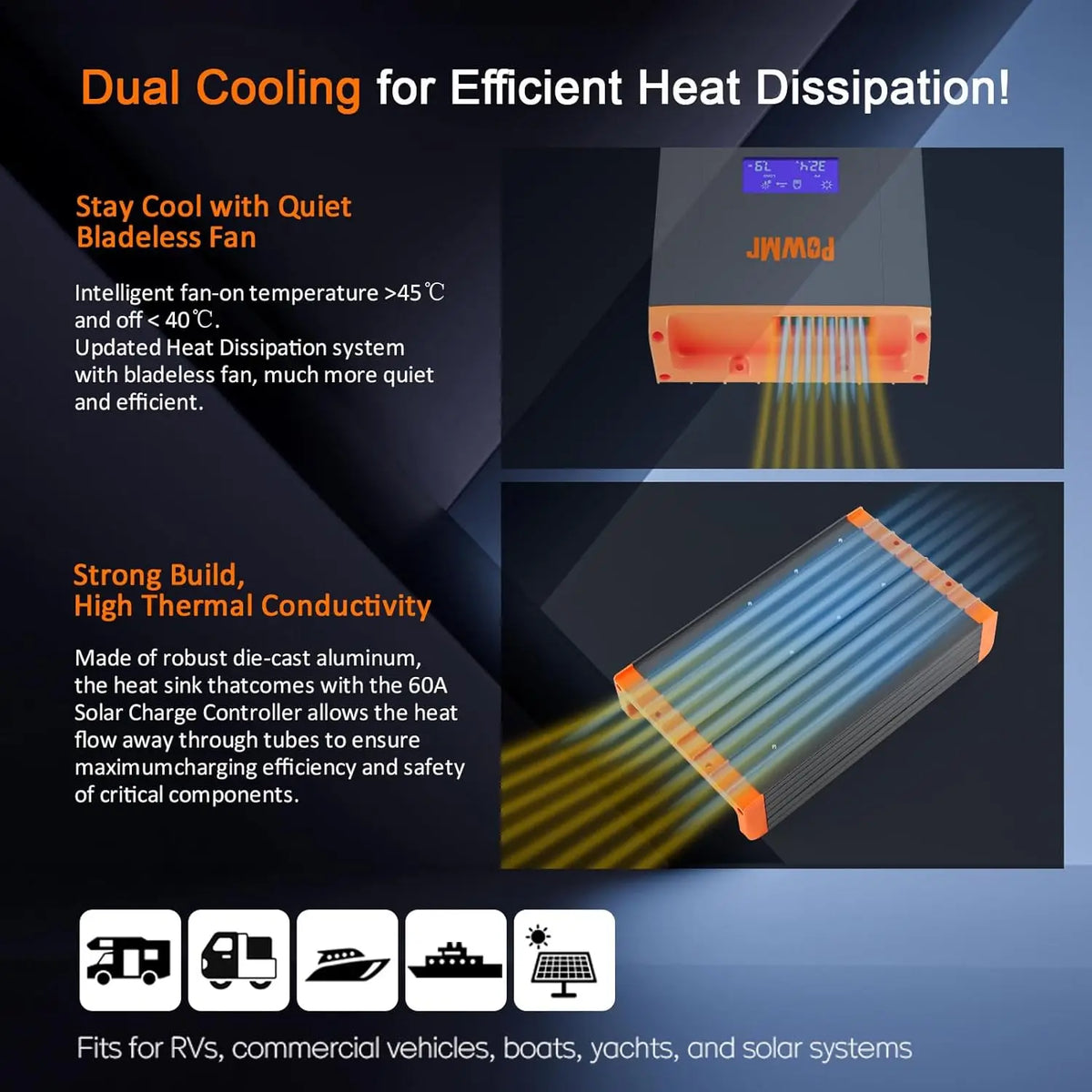

Fan Start Temperature |
>45℃ / 104℉ |
Fan Shutdown Temperature |
<40℃ / 95℉ |
General Specification | |
Electromagnetic Compatibility |
EN61000, EN55022, EN55024 |
Protection Level |
IP21 |
Operating Temperature |
-20℃ ~ +55℃ / -4℉ ~ 131℉ |
Storage Temperature |
-40℃ ~ +75℃ / -40℉ ~ 167℉ |
