1. Channel: 12 channels

2. Maximum input level of microphone: +24dBu

3. Maximum input level of line: +24dBu

4. Maximum input level: XLR+26dBu

5. Frequency response: 20Hz-30kHz±0.5dB

6. Max Input Power: 15W

7. THD+N: ＜0.01%

8. Crosstalk (1kHz): > 85dB

9. Noise (22Hz to 22KHz): equivalent input noise -122dbu, residual output noise <-90dbu

10. Mono/Stereo channel EQ:

High frequency, broom type, +/-15db, 12KHz

Low frequency, broom type, +/-15db, 80KHz

Mid-high frequency, peak type, +/-15db, 2.5KHz

11. Mono

XLR: 2PIN, 2Kohm, -60~+14dbu sensitivity

TRS: tip, 10Kohm, -40~+14dbu sensitivity

XLR: +48V

Material: Metal+plastic

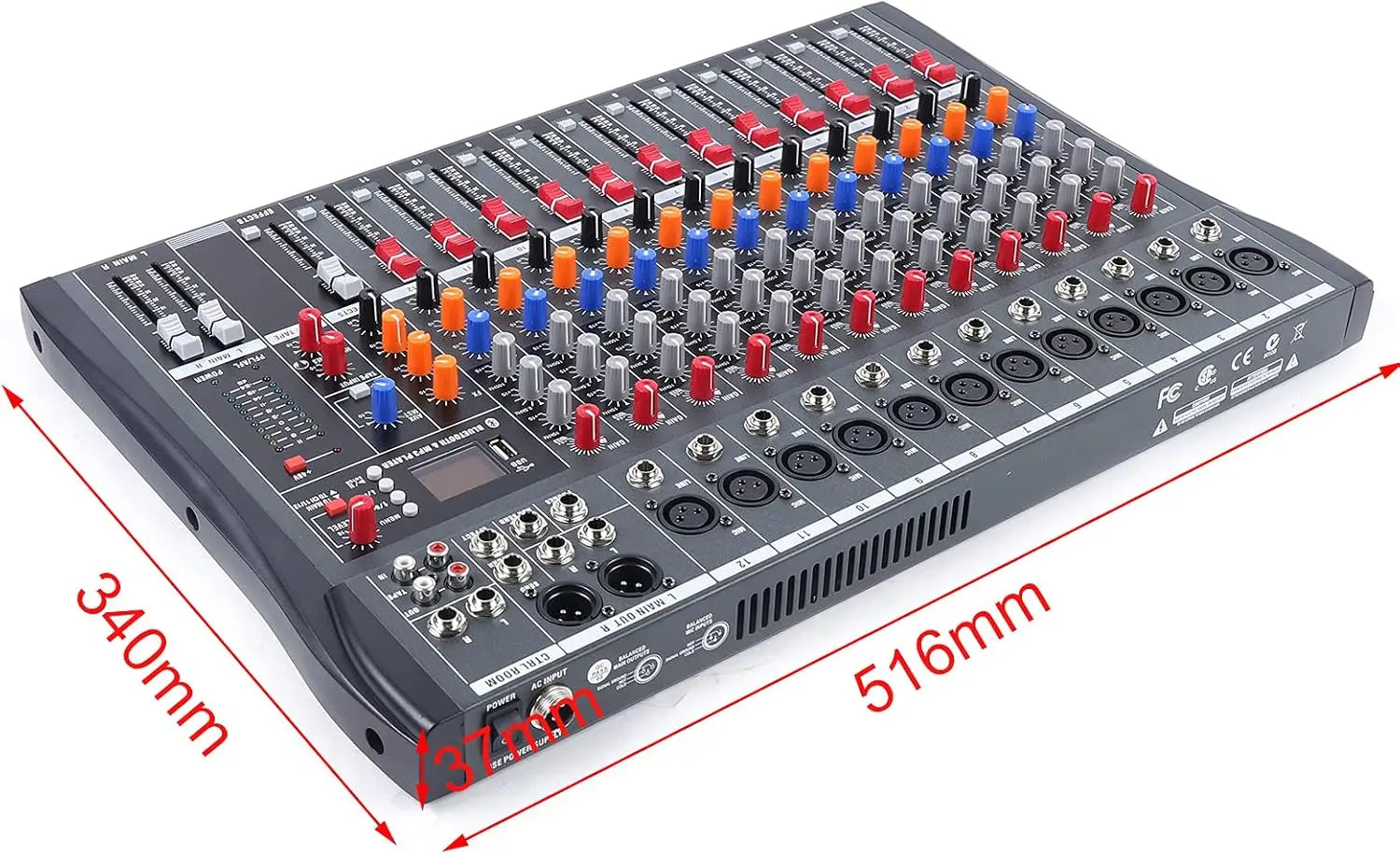

Size（approx）: 51.6cm x34cm x3.7cm/51.6*13.38*1.4inch

Weight: 5.9kg/13lb

Package included:

1 x Mixing Console

1 x Power Cable

1 x User Manual

Note:

1. Please allow a little error due to manual measurement.

2. Do not use this device near the TV, radio, stereo, cell phone or other electronic device, or it may cause noise.

3. Please use a soft dry cloth to clean the mixer.

4. Do not set any equalizer and level knob to the maximum position, otherwise it may cause acoustic feedback and damage the speaker.

5.The product needs to be used with an amplifier！
